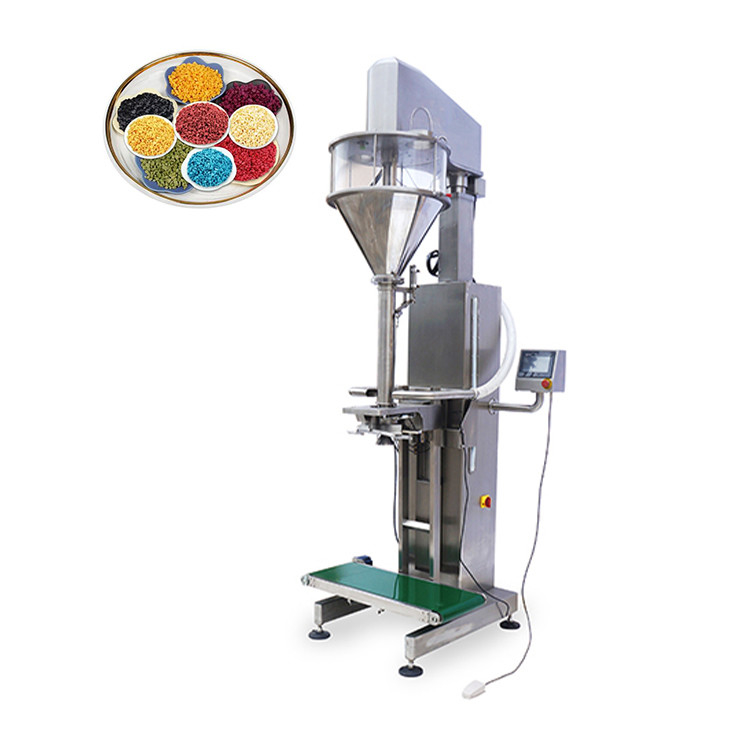

LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment
  • LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment
  • LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment
  • LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment
  • LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment
  • LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment
  • LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment
LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment

LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment

Place of Origin Zhejiang Province,China
Brand Name LTPM CHINA
Certification CE, GMP, SGS, BV
Model Number LTWGF-Series
Product Details
Weight:
350 KG
Machinery Capacity:
300BPH
Filling Speed:
1- 8 Times Per Min
Packing Weight:
1kg - 50kg
Voltage:
3P AC208 - 415V 50/60Hz
Packing Precision:
1~20kg, ±0.2%, >20kg, ±0.1%
Overall Dimension:
1125*975*2500mm
Total Power:
2.37Kw
Highlight:

LTWGF- Series Powder Filling Machine

,

Powder Packing Machine 300BPH

,

Powder Auger Filling Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25 days
Payment Terms
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability
45 sets/month
Product Description

This Series Packing Machines Can Handle Weighing, Filling Functions Etc. Featured With Real-Time Weighing And Filling Design These Machine Can Be Used To Pack High Accuracy Required, With Uneven Density, Free Flowing Or Non Free Flowing Powder Or Small Granule.I.e. Protein Powder ,Food Additive, Solid Beverage, Sugar, Toner, Veterinary And Carbon Powder Etc.

LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment 0

Features

1.Pneumatic Bag Clamper And Platform Equip With Load Cell To Handle Two Speeds Filling As Per Preset Weight. Featured With High Speed ​​And Accuracy Weighing System To Guarantee The High Packaging Accuracy.
2.Servo Motor Does Up-Down Work Driving With Tray Together, The Up-Down Rate Can Be Set Randomly, No Dust Spouts Out When Filling.
3.With Servo Motor And Servo Drive Controlled Auger, Perform Stably, And With High Accuracy.
4.PLC Control, Touch Screen Display, Easy To Operate.
5.Made Of Stainless Steel, Combined Hopper Or Split Hopper, Easily To Be Cleaned.
6.With Handwheel To Adjust The Height , Easy To Fill Many Kinds Of Weight.
7.With Fixed Screw Installation, The Material Quality Won’t Be Effected.

Process:

Put Bag/Can(Container) On The Machine → Container Raise → Fast Filling, Container Declines → Weight Reaches The Pre-Set Number → Slow Filling → Weight Reaches The Goal Number → Take The Container Away Manually
Note: The Pneumatic Bag-Clamp Equipment And Can-Hold Set Is Optional ,They Are Suitable For Can Or Bag Filling Separately.
Two Filling Modes Can Be Inter-Changeable,Fill By Volume Or Fill By Weight.Fill By Volume Featured With High Speed ​​But Low Accuracy.Fill By Weight Featured With High Accuracy But Low Speed.
Product Details
LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment 1
Emergency Stop Button:
If There Is Any Accident, You Can Turn This Button To Stop The Machine Directly
Electric Control Cabinet:
The Circuit Layout Is Simple, And Different Electrical Platforms Can Be Replaced According To Customer Requirements, Such As Siemens, Schneider, Etc.
LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment 2
Company Profile
LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment 3
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment 4
Our Certificates
ISO, CE, SGS, BV Certified Company.
LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment 5
Our Sales Team

LTWGF- Series Powder Packing Machine 300BPH Dry Protein Auger Filling Equipment 6
Our Customers
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
