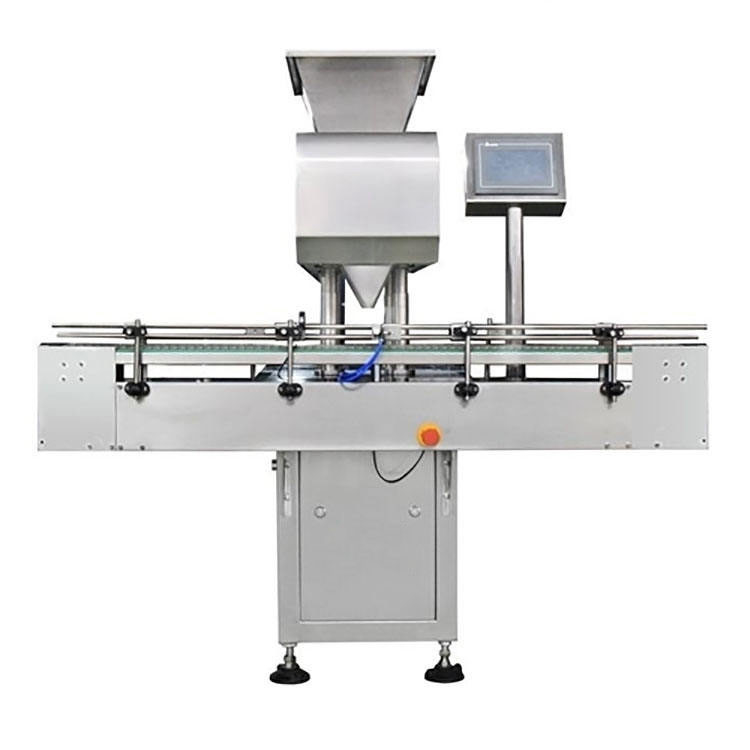

High precise pill tablet gummy electronic capsules counting machine for bottle filler 200000pcs/h capacity
Product Description
Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 8 sets imported counting sensor for counting with 8 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
Product Details
1. HIGH POWER
PHOTOELECTRIC DETECTION DEVICE
Adopting elecrtonic counting technology of high dust resistance,still running normally in high dust environment,accuracy rate >99.5%.
2. MUTI-STAGE VIBRATION BLANKING DEVICE
Can be used to separate and count the large,irregular and viscous materials effectively.
3. FLIP BOARD STRUCTURE
The top and bottom closed design obtains the national new patent,does not damage the material when working.
4. MATERIAL
Contact with the material all use 316 stainless steel material
5. TOUCH SCREEN
Taiwan Delta Touch screen can be used to set the parameters according to the need.
6. BOTTLE DETECT SENSOR
Count accurate,do not appear omission phenomenon.
| Main Technical Data | ||||
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
