Products Description

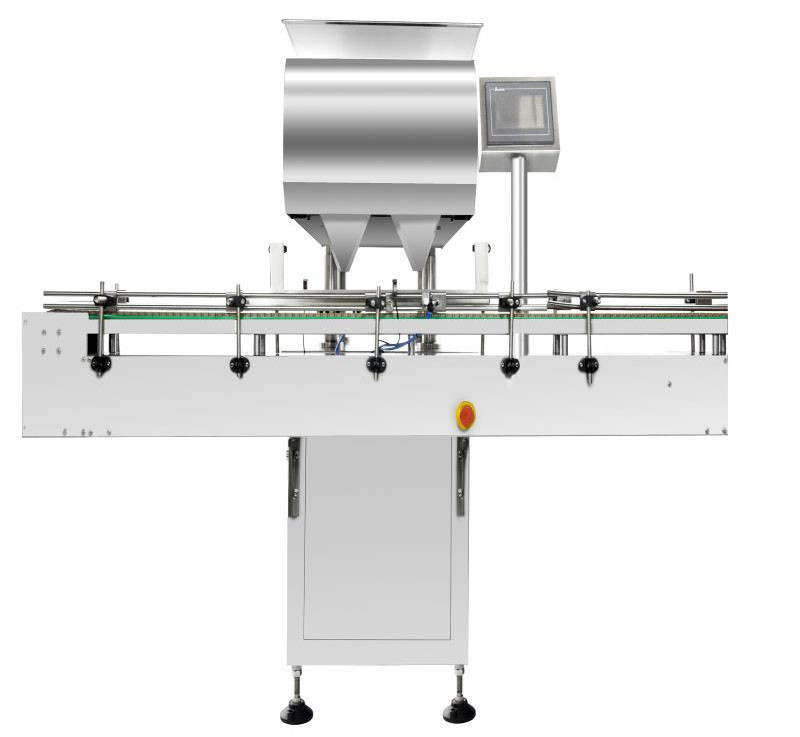

The electronic counting machine is a kind of light and compact counting and filling equipment for solid particles. As a high-tech material counting and filling machine, the machine is widely used in pharmaceutical, food, chemical and other industries to count and fill tablets, capsules, pills, food, health care products and other materials.
Application
(1) Strong compatibility, high accuracy, wide application range, can count and bottle tablets (including shaped tablets),capsules, soft capsules (transparent, opaque) pills
(2) It has strong applicability and adopts the company's original anti-high dust photoelectric sensor technology, which can workstably under the condition of high dust.
Main Features
1) Wide application range, strong compatibility and high accuracy.
2) Fully automatic,high degree of intelligence with self-fault detection and alarm.
3) Compact structure, stability and durability, no regular replacement parts, small footprint, convenient to operate, dismantle and clean, cost and labor saving.
4) Vibratory feeding, unique patent flap dispensing mechanism avoid drug damage.
5) Adopt original innovative anti-dust photoelectric detection technology, which can work stably under the condition of high dust.
Main Technical Data | ||||
Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
Size of bottles | 20-300ml | |||
The diameter for bottles mouth | 20-80mm | |||
Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
Power supply | 220V 60HZ | |||
Air pressure | 6kgs/c | |||
Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
