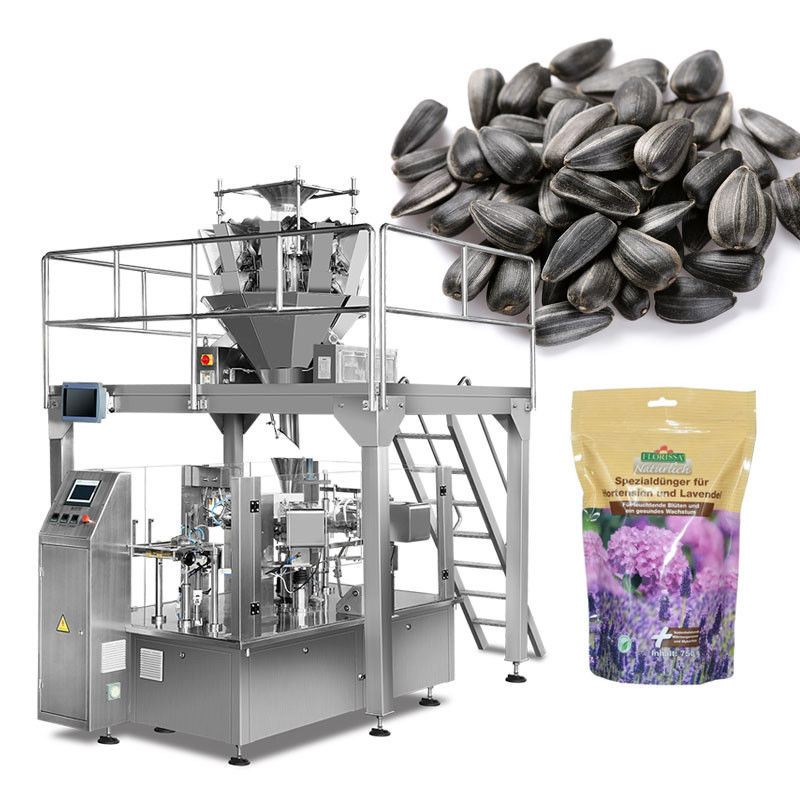

Premade Bag Packing Machine
>
|
|
| Place of Origin | CHINA |
| Brand Name | BHP-240Z |
| Certification | CE |
| Model Number | BHP-240Z |
Function:
The machine can automatic finish bag forming, filling, easy tear notch making, sealing, finished bag
discharged. Reclosable zipper, spout and Round corner punching are optional.
Machine Feature:
1. Automatically check pouch open status, it will not fill and seal when pouch is not opened fully. It avoids the wasting of pouch
and raw material and save cost.
2. Machine working speed can be adjusted continuously with frequency converter
3. SIEMENS PLC adopted, the control system is easy to operated with friendly HMI interface.
4. Machine will alarm when the air pressure is abnormal and stop working with overload protect and safety device.
Advantage :
1. Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
4. The width of the bags could be adjusted by electrical motor.
5. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
6. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
Technical Specifications:
|
Working position |
eight-working position |
|
Pouch material |
Laminated film PE,PP |
|
Pouch pattern |
stand-up&zipper pouch |
|
Pouch size |
W:100-210mm L:100-350mm |
|
Filling Scope |
10-5000g( The screw attachment is to be changed) |
|
Weight Accuracy
|
Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5% |
|
Speed |
10-45pouches/min(The speed depends on the product status and flling weight)) |
|
Voltage |
380V 3phase 50HZ/60HZ |
|
Total power |
8.5KW |
|
Compress air |
0.6m3/min(supply by user) |
