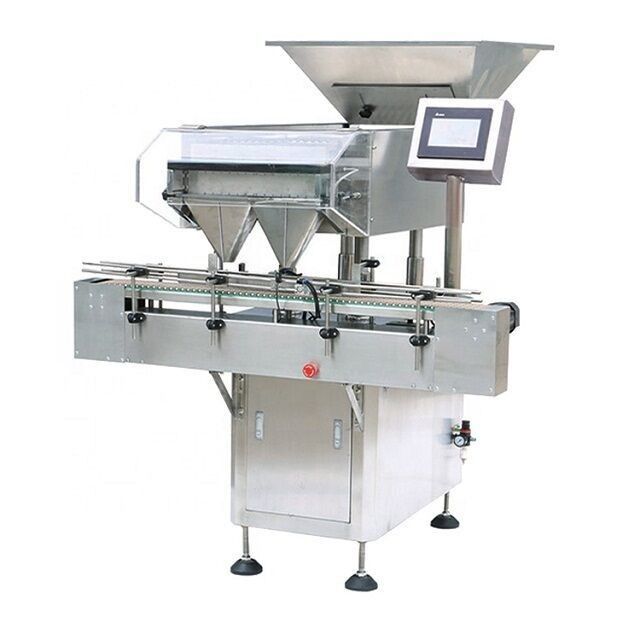

PLC 220v 50hz Automatic Counting Machine 60cpm 200000pcs/H

Description:

counts grain through 16 strips of channel, medicament can lay off through passing two classes automatically, filling medicines is uniform and counting tablets is precise, being sutiable for all kinds of single bottle filling quantity and tablet type, changing variety without replacing any mould.

It adopts the OMRON PLC control and the sensitive technology of the CCD and its distinguishing rate is high, responding speed is fast, and the operating is the stepless timing. It is very convenient to operate; its control system is controlled by adopting the man machine interface touch screen.Adopting international name brand photo-electricity controlling system, controls when bottles are lacking and blocking then cease automatically, the operating is stable and reliable. Materials touching with the medicine conforms to the requirement of GMP.

Features:

1. Speeds up to 60 cpm based on 100-count bottles with vibration system;

2. Counter discrepancies is less than 1‰;

3. Operation stable and lower noise;

4. Bottle convey smoothly with dual-track conveyor;

5. Full-set protecting device keep operation steady and reliable;

6. Touch screen Control System which is easy to control;

7. Simple Straight Forward Operator Controls;

8. On-Screen trouble description which is easy to solve;

9. Stainless Frame;

Machine Induction

Under the driving of the vibration, the pills pass through the regulating valve below the material container, moving forward in order and fall into counting tunnels. When the pill reaches raster holes, the counting photoelectric will produce a pulse signal and counting. The signal is grouped into the left and the right, accumulated and sent to the PLC. When the set quantity is reached, the flashboard will close. At the same time, the bottle to be filled is already in its position. The funnel cylinder board opens, and the counted pills fall into the bottle. Then the tunnel begins another counting, the positioning cylinder opens, and the filled bottle is sent to the next process. A new bottle is placed under the funnel, a new round of counting and filling starts.
