| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP, SGS, BV |
| Model Number | LTEC-12 |

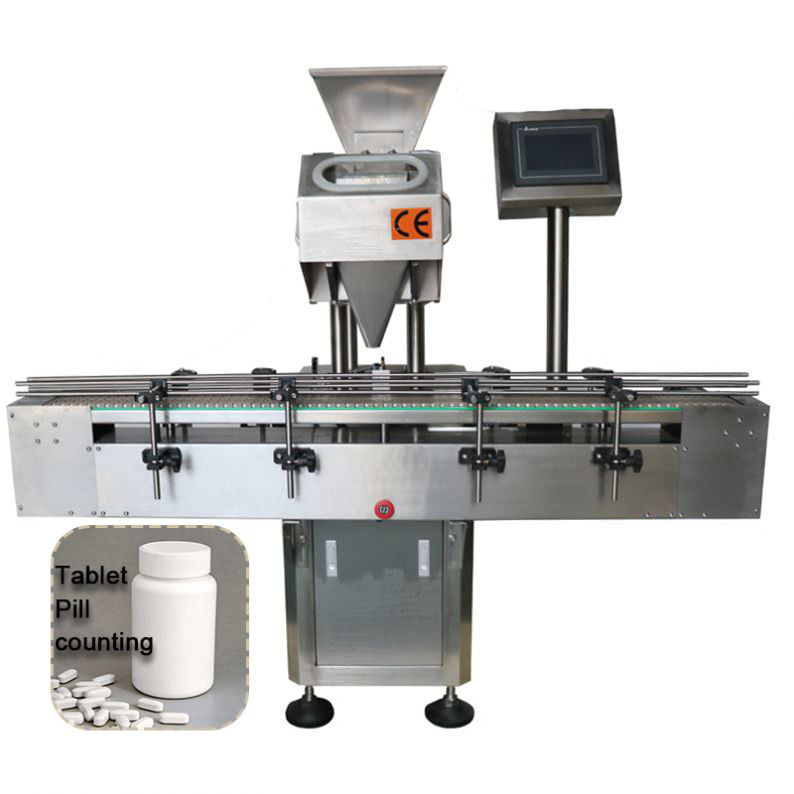

Electronic Tablet/capsule Counting Machine
This machine is mainly used for pill,soft hard capsule,plain sheet,sugar and other shape material count of filling in medicine,food,chemical and other industries pakaging line tablet.
Features:
1. Grain counting completely correct .
2. With precounting function, it can continue to count grain at the same time of filling,save time.
3. Special design of the 3 D counting electric eye,distinguish overlap medicine granule and the fragment.
4. The 3 level vibrator is made from German Binder original imports, vibration faster , stable performance
5. Easy to operate, touching screen can store 50 different drug parameters, when replacing the drug, the drug directly call the corresponding parameters.
6. The machine all adopt the stainless material, parts adopts 316 material machine main device for the overseas well-known brand .
Application:
The machine is equipped with detecting system which can count and fill all standard and irregular shapes and all sizes of tablet, capsules, caplets, soft gels.
Stainless Frame
Industry Type(s): Nutraceuticals, Pharmaceuticals, Food & beverage
Specifications:
| Model Name | LTEC-12 |
| Application |
Filled capsule(00-5#) Soft Gelatin capsule chewing gum tablet other solid object under machine range |
| Hopper Volume | 40L |
| Capacity | 10-50bottles/min |
| Filling Quantity | 10-9999pcs/bottle (adjustable) |
| Bottle Size |
Diameter: 30-75mm Height:40-250mm |
| Counting Size |
Thickness: 3-10mm Diameter: 3-15mm Length: 3-25mm |
| Compressed air | 0.5Mpa |
| Conveyor Belt Length | 2400mm |
| Machine Weight | 650kg |
| Machine Size L × W × H (mm) | 1450 × 1100 × 1400 |
