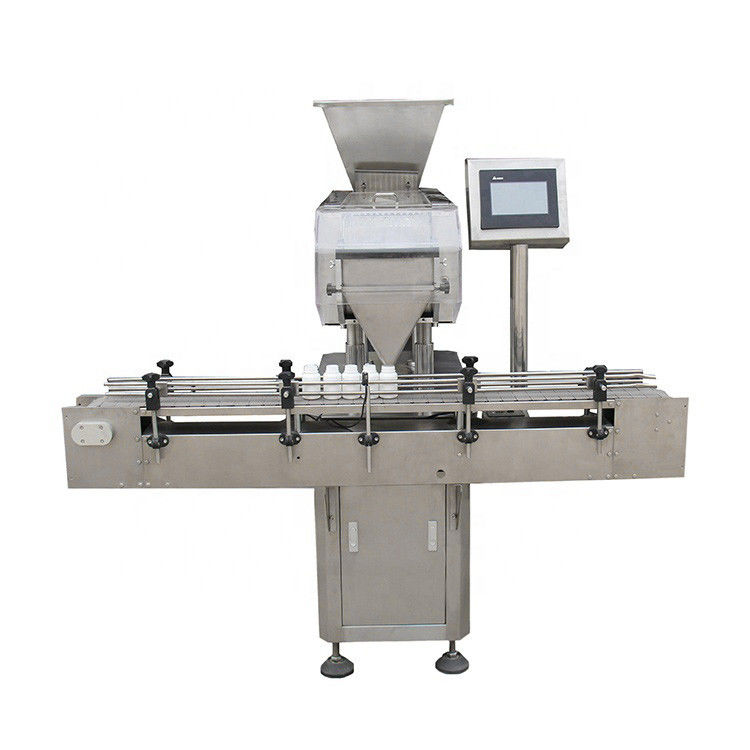

Automatic Counting Machine
>
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP, SGS, BV |
| Model Number | LTEC-12 |
Description:
This capsule counting and filling machine adopts advanced vibration and multi-channel feeder, controlled by micro computer, it can dynamic scanning count capsule and transfer the bottle automatically.The system can test automatically and the machine is with an alarm.it also has the automatic stop function and other advanced technology. This machine meet GMP standard,which is suitable for pharmaceutical or food industries
This machine is a new generation counter designed by innovation concept, widely used in pharmaceutical, foods &chemistry industry etc, It can count/fill automatically sphericity, pills &soft/hard capsules/tables or slicing articles.
Full Automatic Capsule/Tablet Counter Machine performance:
1. High efficiency and low cost.
2. Fully automatic control and high hygienic design.
3. Excellent and stable product quality.
4. Saving work space and manpower for users.
5. Easy maintenance and high safety standard.
Characteristic:
Adjustable frequency & swing of moving screen
Counting precision is high.
Low noise,easy maintainence
Specifications:
| Model Name | LTEC-12 |
| Application |
Filled capsule(00-5#) Soft Gelatin capsule chewing gum tablet other solid object under machine range |
| Hopper Volume | 40L |
| Capacity | 10-50bottles/min |
| Filling Quantity | 10-9999pcs/bottle (adjustable) |
| Bottle Size |
Diameter: 30-75mm Height:40-250mm |
| Counting Size |
Thickness: 3-10mm Diameter: 3-15mm Length: 3-25mm |
| Compressed air | 0.5Mpa |
| Conveyor Belt Length | 2400mm |
| Machine Weight | 650kg |
| Machine Size L × W × H (mm) | 1450 × 1100 × 1400 |
