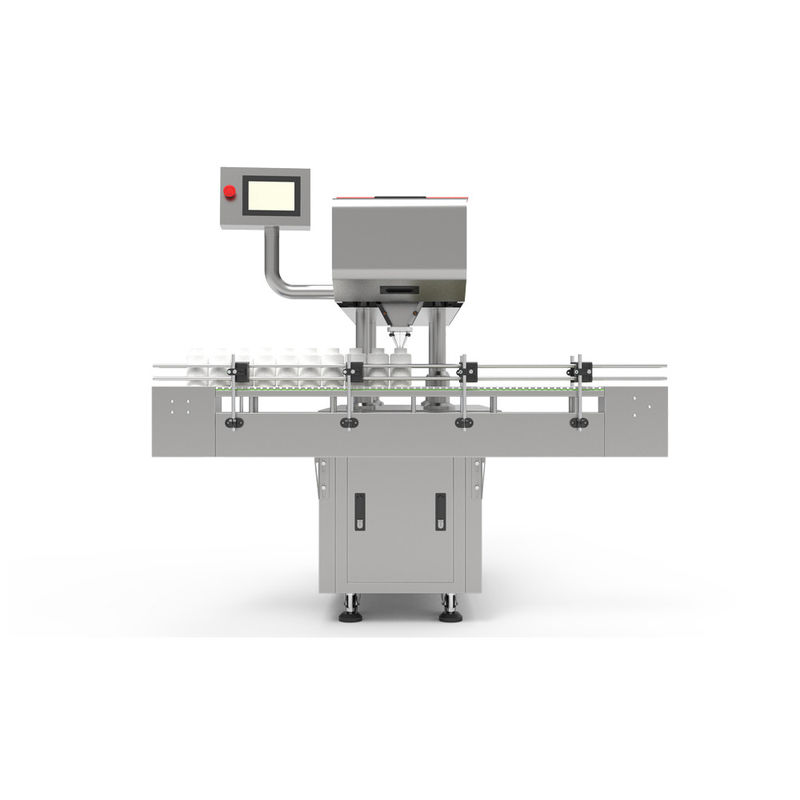

GMP Medicine Tablet Capsule Automatic Counting Machine 50bpm

Place of Origin	China
Brand Name	LTPM China
Certification	CE, GMP, SGS, BV
Model Number	CountPro series

Product Details

Highlight:

GMP Capsule Automatic Counting Machine

300ml Bottle Automatic Counting Machine

Automatic Counting Machine 50bpm

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Negotiation

Packaging Details

Export Standard Wooden Case

Delivery Time

25days

Payment Terms

T/T,L/C,D/P

Supply Ability

15sets/month

Product Description

Simple Description

CountPro-Series is our newest technology on High Speed Type Electronic Counting Machine. CountPro-Series counting machine comes with Several Different model which includes 8 channels, 12 Channels, 16 Channels and 24 channels to fulfill different clients’ requirement. The advanced machine adopts complete import counting Module and Pre-counting pneumatic system to ensure high speed and stable working purpose. CountPro had been widely used in Pharmaceutical, cosmetics, nutraceutical and food industry. The machine complete meet EU GMP standard.

Features

1. We supply DQ, IQ,OQ,PQ,FAT,SAT,SOP validation documents. 2. Panasonic CPU controlling system, counting accuracy reach to 99.99% with 20nm IO feedback time. This feature had been proved more accurate than European technology. 3. Automatic rejection system with wrong count bottle. This ensure continuous production without any stop. 4. LTPM Made module type pneumatic connection without any PU pipe for Pre counting cylinder to ensure accurate and faster counting. No air leakage and shorten air supply distance. 5. Three Stage vibration system with continuous vibration drives faster counting. 6. Slope design for counting sensor ensure Tablet/Capsule better drop down. 7. PLC Controlling System.

Main Technical Data

No.	Item	Specification
1.	Model	CountPro-8
1	Production Capacity	20-50bpm (60pcs/bottle)
2	Accuracy	99.99%
3	Bottle Size	15-300ml
4	Power Supply	220V AC/50HZ
5	Total Power	1.0kw
6	Air Pressure	0.5Mpa
7	Overall Dimension	1600×1600×1600 mm
8	Weight	480kg
