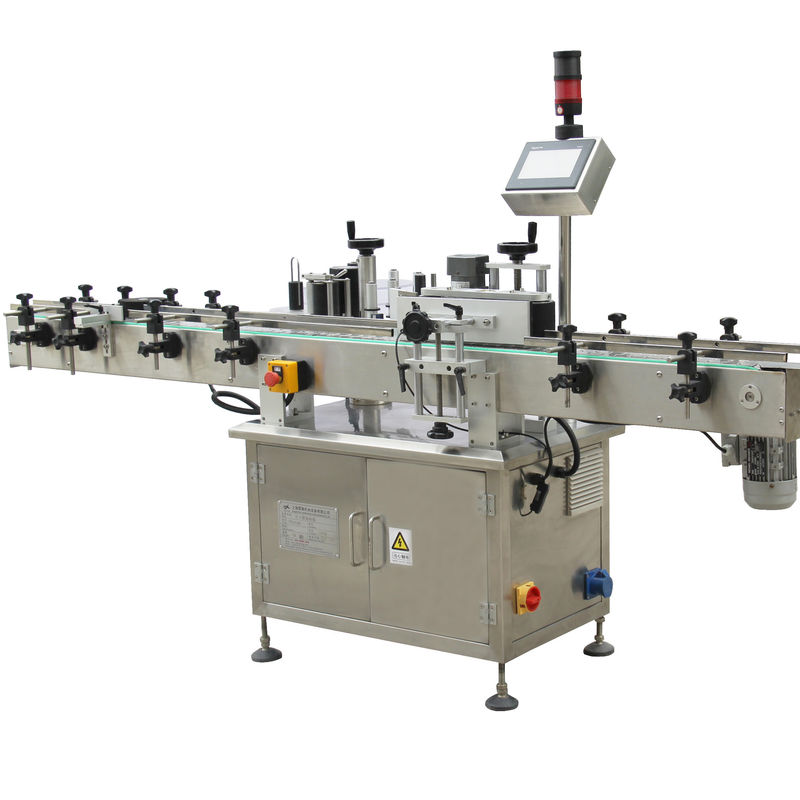

Automatic Labelling Machine
>
|
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP |
| Model Number | MT-200 |
Automatic card labeling machine be exclusively used in all kinds of cards labeling and all kinds of plastic surface sheets,protection film Labeling,High precision, no bubble film; have the automatic identification function is enabled automatically according to the different products with different label head work.Core working principle:The sensor detects the signal to return products after labeling control system, signal processed by PLC, posted at the appropriate time send label attached to the product set position, products covered through the calibration device, label coated firmly, a label attached to complete action
Detail
1. PLC control panel
Choose the color touch screen to support the design and display of different formulas.different products can record thetechnical parameters for the next direct use.
2. Feeding mechanism
Used for holding roll labels
3. Adjustmentmechanism
Up and down adjustment rod:adjust the top hand wheel to sdjust the height of labeling head.
4. Label head adjustment seat
Unique to our company, able to adjust the label head before and after ,left and right,inclination,etc.no head angle adjustment,convenient and fast.
5. Peeling plate
Peel off labels from backing paper.
Application:
*For all kinds of cylindrical,tapered objects wrap around labeling.
*Widely used in food, cosmetic, chemical, pharmaceutical and other industries.It can work alone or connect to production line.
*Date printer can be added to print production date,batch lot and expiry date while labeling.
*Support customization.
1. Using side label method, add Press carton structure, ensure the stability of carton.
2. When the label touch the carton, the brush firm the front label, make sure the label is smooth and firm.
3. Conveyor speed can be adjusted to match up the send label speed, ensure label no wrinkle.
4. The inverter control the Motor, make sure the conveyor speed,press carton speed and send label
5. Speed synchronous operation, label surface is smooth and label position is accurate.
6. The durable engine and parts are solid and durable, adopt standardized modular design completely interchangeable, 24-hour operation ensure the security and stability.
7. The whole machine use S304 stainless steel and anodized senior aluminum alloy Never rust and with high corrosion resist
|
Main Technical Parameter
|
|
|
Model
|
MT-130D
|
|
Operation:
|
Right or left
|
|
Running speed:
|
20-130 cartons/min
|
|
Label speed
|
≤35 m/min
|
|
|
Glassine backing Paper , opaque label (The application of carton can be customized according to customer's demands)
|
|
Labeling accuracy
|
±1.0mm (subject to the roughness of the plane)
|
|
Maximum diameter of label roll:
|
Ф 350mm
|
|
Coil diameter:
|
Ф 76mm
|
|
Power supply:
|
AC220V 0.8Kw 60HZ
|
|
Overall Size:
|
2200X1800X1500 mm
|
|
Machine Weight:
|
200kg
|
