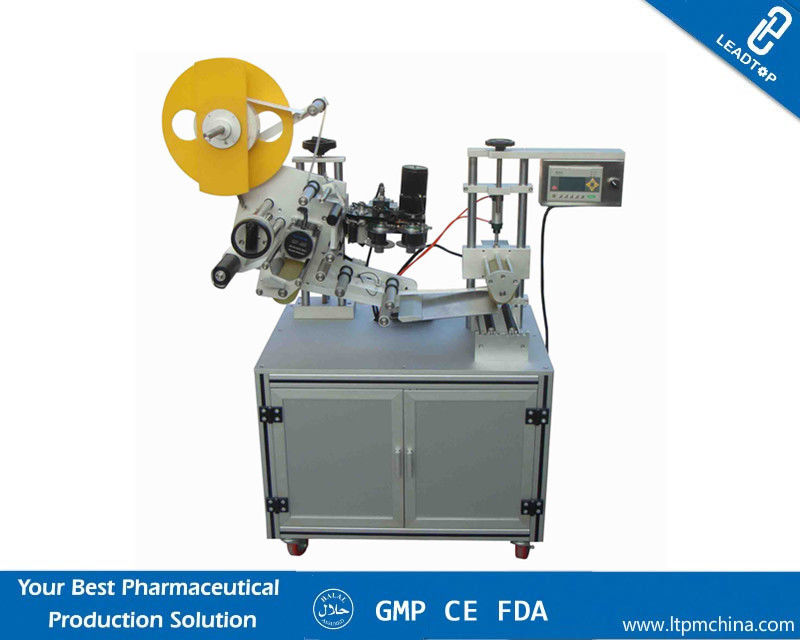

Automatic Labelling Machine
>
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP |
| Model Number | MT |
Product Description
This shrink sleeve labeling machine is widely used for different material of bottles, cans, jars and so on.
The label cost is comparetively lower, the machine can meet requirement of those users who have variety of containers. It is most economical models on cost to make mass production.
The equipment has massive modularization design concept to make it easy and simple to change bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, changing the label is only needed to change the program. The machine is embodies the concept that it is used for users and considered for users in everywhere.
The machine is designed for non-staning cylindrical containers or products that are not vertically stable (round bottom or top-heavy) including ampoules,vials,crayons,tube,lip balm containers,small batteries,ect.
Features:
1. PLC combined with LCD touch screen pannel,the setting and operation is clear and easy.
2. The equipment is complied with GMP requirements and made of SUS304 stainless steel and high-class aluminium alloy.
3. The machine has many functions such as guiding,separating,labeling,attaching,counting.
4. The labeling position of height can be adjusted.
5. The machine can be used in production line with conveyor belt.
6. The special machine can be customized according to customer requirement.
Specifications:
| Production | 50-130bottle/min |
| Label Specifications | Glassine paper, adhesive sticker opaque label |
| Labeling accuracy | ±1mm (subject to the roughness of the plane) |
| The application of label | Object customizing |
| The application of label | Height 20-70mm Length 25-120mm |
| The inner diameter of label | Roll 76mm |
| The outer diameter of label | Roll 350mm |
| Driving mode | Servo motor |
| Power of motor | 500w |
| Voltage | AC 220V 50/60Hz Single phase |
| Overall dimension | 2200×1000×1800mm |
The sample service
1. We can send you the video of the running machine.
2. You are welcome to come to visit our factory,and see the machine running.
3. If we get the permission of the customers who have bought the machines from us,we can provide you their contact information and you can go and visit.
Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our
professional suggestion,as you know,we have been in this industry for many years.
2. We can offer free technical support and consultation such as design your factory,draw the factory layout and so on.
