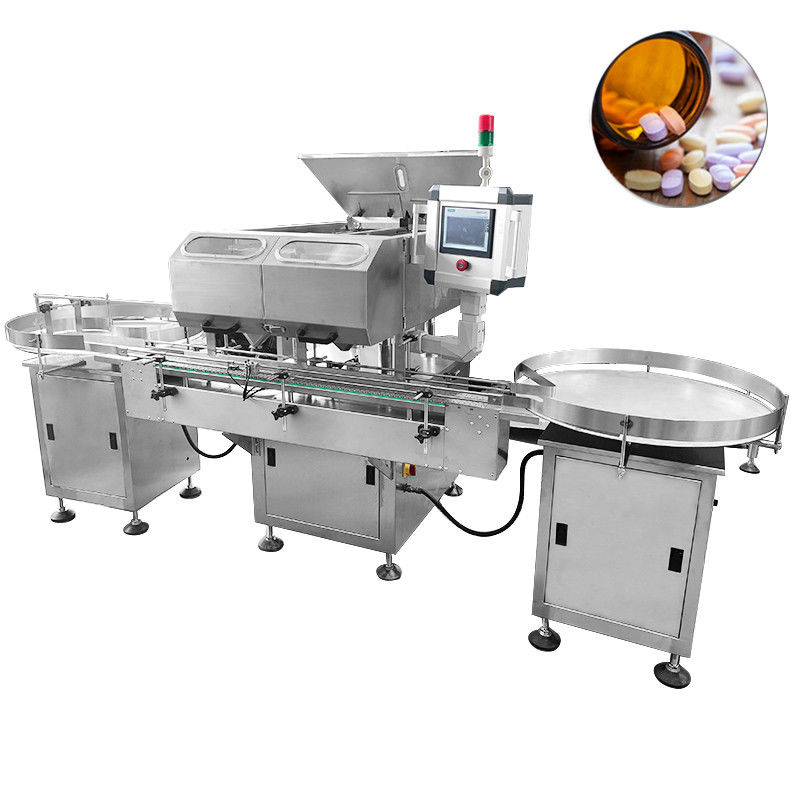

Automatic Counting Machine
>
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP, SGS, BV |
| Model Number | LTEC-Series |
Description
1. Enhaced full line compatibility:controlled by micro-computer and anti-dust technology,this machine can be used for tablets(including irregular shape of tablets),capsules,soft capsules(including irregular shape of tablets,transparent or colorful gels),pellets and most other kinds of medicines and tabloids.
2.No blockage:Special designed hopper mouth,to prevent the drug blockage,even bottle with small mouth can be quickly filled.
3.No harm for materials:feeding and output are stable and averagrly,will do no harm on materials.Filling accuracy is guaranteed.
4.Detection function:machine will not count without detecting bottles' availability ,and will automatically reject abnormal filled bottles,and a certain degree broken of crushed tablets reject,self -diagnose,and alarm control system.
5. Anti-dust:Specially designed high anti-dust sensor technology,to ensure the machine running normally under heavy dust condition.
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
Characteristic:
1.Control the use of touch screen man-machine interface PLC programmable controller technology can quickly set various parameters.
2.Light control technology automatic detection of bottle or bottle turning waste to reduce to the lowest point of the capsule automatic alarm.
3.The mold all use the cylinder pin position design to make the replacement mould only need 5 minutes to install in place convenient and quick.
4.Drug contact parts all adopt 304 stainless steel, accord with GMP standard.
Advantages:
1.Metal fuselage, strong and durable, which adapts to the industrial production environment.
2. Production process set industry demand, in line with a variety of standard product production standards.
3.Complete industrial standard certification, with EU CE certificate,ISO international certification and other certificates and
certification.
Application
This Machine Suitable For Scientific Research Institutions, Hospitals, Small And Medium-Sized Pharmaceutical Factories, Health Products Factory Production Packaging
