| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP, SGS, BV |
| Model Number | LTEC-Series |

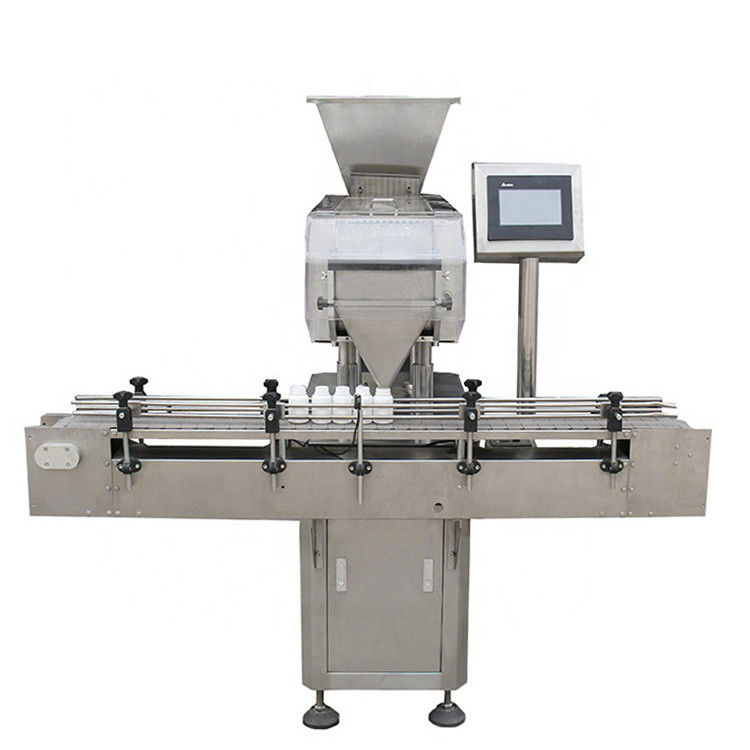

It is suitable for tablets, capsules, pills of 3mm to 20mm size. This machine is widely used in scientific research institutions, hospitals, pharmaceutical plants, laboratories, and health care products factories, in line with GMP requirements.
Features
(1) Strong compatibility, high accuracy, wide application range, can count and bottle tablets (including shaped tablets), capsules, soft capsules (transparent, opaque) pills
(2) It has strong applicability and adopts the company's original anti-high dust photoelectric sensor technology, which can work stably under the condition of high dust.
(3) Vibratory feeding, unique patent flap dispensing mechanism does not damage drugs
(4) High degree of intelligence, with multiple detection and alarm control functions such as no bottle count, fault self-test, etc.
(5) Fully automatic operation, intelligent joint control with upper and lower processes, good coordination, no need for special operation, saving labor
(6) Small footprint and low cost of use
(7) It is convenient to change the variety, and it is convenient and quick to dismantle the clearing field without any tools.
(8) The structure is exquisite, there is no expensive wearing parts, and the maintenance cost is low.
Main Technical Data
| Model | LTEC-12 | LTEC-16 | LTEC-24 | LTEC-32 |
| Slide wheel | 12 Channels | 16 Channels | 24 Channels | 32 Channels |
| Size of Object | Tablet: φ5-12mm Capsule: 00#-5# all kinds of soft capsule | |||
| Size of bottles | 20-300ml | |||
| The diameter for bottles mouth | 20-80mm | |||
| Output | 4,000pcs/min | 6,000pcs/min | 8,000pcs/min | 10,000pcs/min |
| Capacity | 40bottles/min | 60bottles/min | 80bottle/min | 100bottles/min |
| Power | 0.9KW | 0.9KW | 1.35KW | 1.35KW |
| Power supply | 220V 60HZ | |||
| Air pressure | 6kgs/c | |||
| Overall dimensions(mm) | 1700×1700×1900 | 2000×1700×1900 | 2800×1700×1900 | 3200×1700×1900 |
This Machine Uses The Most Advanced Anti-High Dust Electronic Counting Technology. Tablets (Including Shaped Tablets), Hard Capsules, Soft Capsules (Transparent, Opaque) Pellets, And Other Solid Particles Ranging In Size From 3 To 12 Mm Can Be Counted And Dispensed. Can Be Bottled, Boxed, Bagged. Fully Compliant With GMP Requirements, Especially Suitable For Research Institutions, Hospitals, New Small Pharmaceutical Factories, Health Products Factories.
Application
Automatic Eleronic Tablet Counting Machine With Two Lines Working Separately To Pack All Kinds Of Tablets And Capsules (Transparent Or Opaque Hard Capsules, Soft Capsules, Pills, Etc.) In The Range Of 3-25 Mm.This Machine Suitable For Scientific Research Institutions, Hospitals, Small And Medium-Sized Pharmaceutical Factories, Health Products Factory Production Packaging
Detail
