Automatic Counting Machine
>
|
| Place of Origin | China |
| Brand Name | LTPM China |
| Certification | CE, GMP, SGS, BV |
| Model Number | HY-2 |
Description

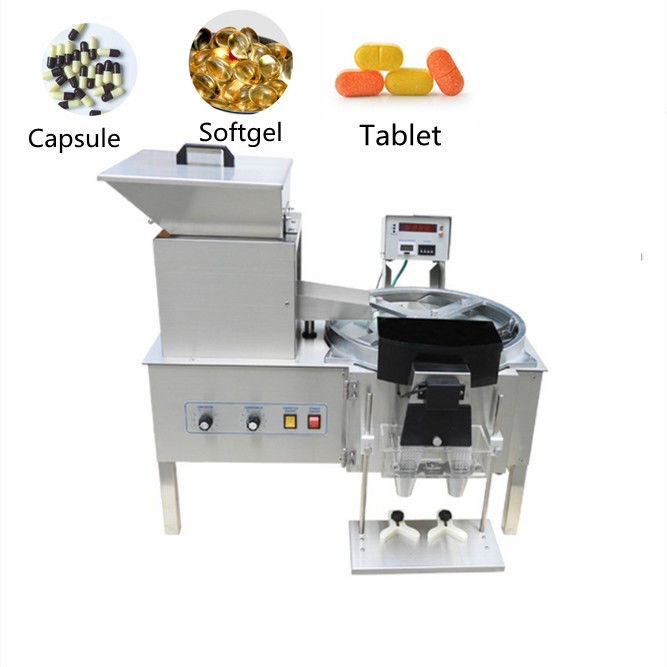

Semi automatic counting machine is a semi-automatic counting and bottle filling machine for capsules, tablets, soft gel capsules, and pills. It is mainly used in pharmaceutical, herbal, food and chemical industries.
Main Features
1.Machine is with high speed photoelectrical technology, counting and bottle filling is fast and accurately;
2. Machine is small, easy to use, clean, and maintain;
3. Counting is in digitals/numbers, the counting range is 0-9999;
4. The capsule container is with vibrating device, feeding automatically, feeding speed can be regulated;
5. There is assembled dust exhaust connect device;
6. The rotary pellet counting speed can be adjusted with stepless according to the bottle putting speed manually.
7. The interior of the machine is quipped with dust cleaner to avoid the dust effect on the machine.
8. Vibration feeding design, the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of the medical pellet out put.
9. Once start with one bottle and automatically to count the next when finished, easy to pick up and put down the bottle by hand.
Specifications:
| Model | HY-2 |
| L*W*H | 76*66*70cm |
| Voltage | 110V-220V 50Hz-60Hz |
| Net Wt. | 50kg |
| capacity | 1000-1800Tabs/Min |
Operating Steps
1. Check the disc to make sure there are no tablets or other debris.
2. Pour the tablets into the disc, make sure not too full.
3. The feed opening set into a plastic bag.
4. Adjust the height of the lift plate.
5. Turn on the power; check whether display of detection sensitivity (sensitivity adjustment refer to Troubleshooting).
6. Set number, such as inventory is set in 1000 or more.
7. Return to zero.
8. Turn vibration switch, adjust vibration, note whether tablets on the disc are one by one ordered, and not overlapped.
9. When the tablet counting is finished, it will automatically count the other side.
10. Please note that whether sensitivity indicator flashes normally in operation, and do sampling often; if abnormal should
immediately stop the machine.
11. When operating please make sure not so many tablets are poured into the disc, so that they are not overlapped and wrong counted.
12. Avoid placing the machine near the windows, outdoors, or in the sun.
Application:
