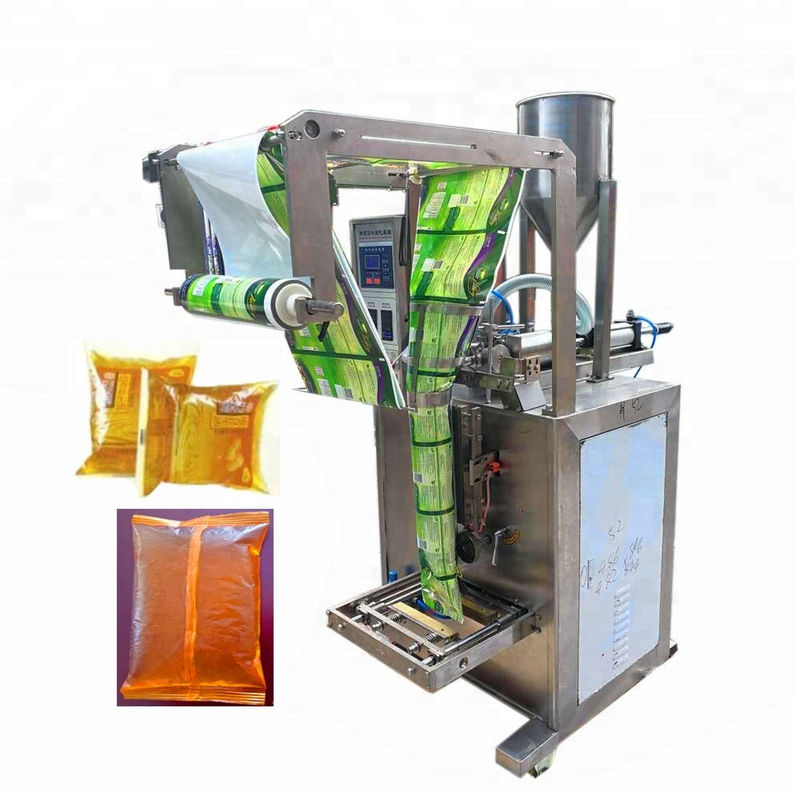

Automatic vertical packing machine for soy sauce pouch Liquid sachet packaging machine for soy sauce bagging machine
Product Application:
Automatic soy sauce Filling and Sealing Packing Machine soy sauce pouch packaging machine Sachet soy sauce bagging machine.
Main Features:
1. Computer program control, simple operation, easy maintenance, stable performance, reliable quality.
2. Packaging speed stepless speed regulation.
3. Adopt the Special Bag length control technology, the bag is long and stepless adjustable. The bag length is accurate and easy to adjust.
4. The intelligent temperature controller, the thermostat can control the heat sealing device to ensure the sealing quality.
5. Replace parts. Can realize three-edge seal, four edges seal, flat bag, pillow bag production.
6. Unique photoelectric positioning technology to ensure that the color label bag design integrity.
7. The packing quantity is stepless adjustable in the rated range.
8. Automatic Printing product batch number, easy to tear mouth, easy to use.
9. The machine is elegant in appearance, full stainless steel structure, meet the hygienic requirements of food and medicine packaging, suitable for food, medicine and chemical industry.
Optional device for your choice:
1. Date Coder
2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)
3. Linking bag control device
4. Air-filling Device
5. Air Exhaust Device
6. Tear Notch Device
Model | UIPM-160Y | UIPM-200Y | UIPM-220Y |
Film width | Max. 320mm | Max. 380mm | Max. 420mm |
Bag length | 30~200mm | 30~300mm | 30~350mm |
Bag width | 30~150mm | 30~180mm | 30~200mm |
Packaging speed | 30~60 bags/min | 10~40 bags/min | 10~30 bags/min |
Filling range | Max. 500ml | Max. 1000ml | Max. 1500ml |
Air consumption | 0.65Mpa | 0.65Mpa | 0.65Mpa |
Total Power | 220V 50/60 Hz | 220V 50/60 Hz | 220V 50/60 Hz |
Machine Power | 1.2 KW | 1.3 KW | 1.5 KW |
Machine size(L*W*H) | 650×700×1600mm | 810×1050×1800mm | 1010×1350×1800mm |
Machine weight | 300kg | 350kg | 400kg |
