Tablet Press Machine
>
|
|
| Place of Origin | China |
| Brand Name | LTPM CHINA |
| Certification | CE |
| Model Number | ZP-Series |

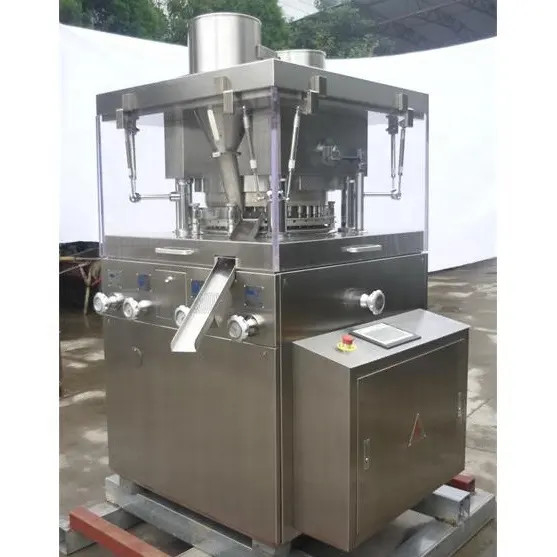

The machine is used to press various regular round tablets and irregular shape tablets (including double-sided printing). It is the best choice for pharmaceutical, chemical, food, plastic, electronics and other production enterprises.
Feature
1. The overall structure of the equipment is compact, with the advantages of good appearance, high production efficiency, low energy consumption, and easy operation. 2. The frame is made of stainless steel for anti-corrosion, and the surface has been specially polished to prevent cross-infection and meet GMP standards. 3. It is equipped with a transparent plexiglass window, which can observe the operation process of the tablet at any time. The window can be opened for cleaning and maintenance. 4. The transmission part is immersed in oil operation, which is good for heat dissipation, wear-resistant, and pollution-free. 5. Imported frequency conversion speed regulation is adopted. With hydraulic system. 6. The machine has overload protection to ensure the safety of the equipment.
Main Technical Parameters
| Die Amount | 23 stations |
| Max. Pressure | 80KN |
| Max. Filling Depth | 17mm |
| Max. Tablet Diameter | 27mm |
| Max. Tablet Thickness | 7mm |
| Turret Speed (RPM) | 16-30r/min |
| Production Capacity | 40000-85000pcs/h |
| Power Supply | 380V /220V |
| Overall Dimension | 1300*1200*1750mm |
| Weight | 2000kg |
