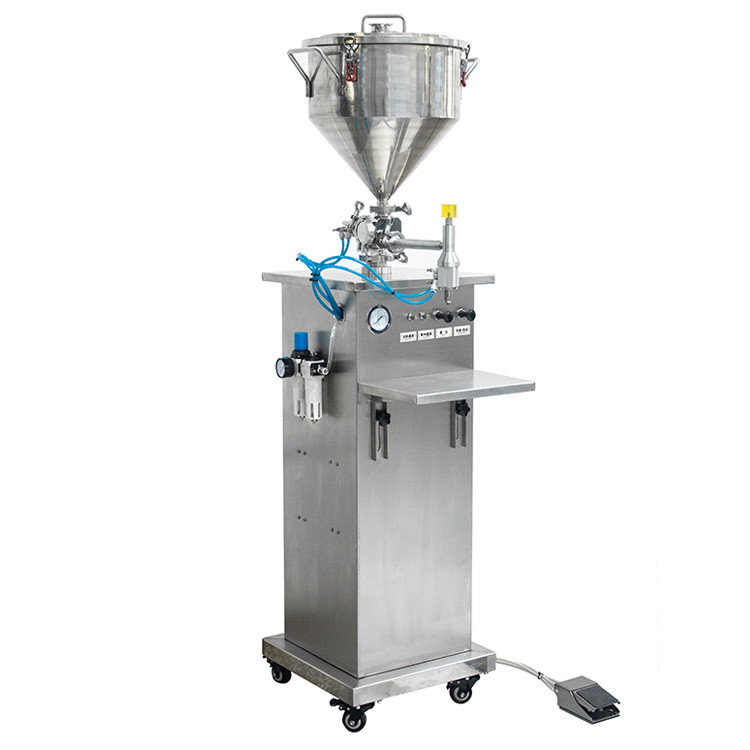

Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump
  • Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump
  • Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump
  • Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump
  • Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump
  • Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump
  • Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump
Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump

Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump

Place of Origin China
Brand Name LTPM China
Certification SGS, CE
Model Number PFS-1S
Product Details
Application:
Liquid And Ointment
Applicable Syringe Specifications:
0.3-25ml
Working Pressure:
0.4-0.8Mpa
Filling Accuracy:
≤±2%
Total Power:
2 KW
Dimensions:
L370*W370*H1450mm
Highlight:

Syringe Liquid Filling Machine

,

Pneumatic Syringe Liquid Filling Machine

,

High Accuracy Ceramic Plunger Pump

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Export Standard Wooden Case
Delivery Time
25days
Payment Terms
T/T, L/C, D/P, Cash, Paypal
Supply Ability
15sets/month
Product Description

Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump 0



Technical Parameters



Applicable Materials
Liquid and ointment
Filling Range
0.3-25ml
Filling Accuracy
≤±2%
Filling Speed
10-30 times/minute
Working Pressure
0.4-0.8Mpa
Dimensions
L370×W370×H1450mm
Total Weight
50KG





Features

1.The body is made of 304 stainless steel, which is excellent in workmanship and meets the requirements of GMP regulations.

2.The machine has a reasonable structure design and is equipped with a stainless steel quick-release joint, which is quick and convenient for disassembly and assembly, and is easy to clean and maintain.
3.It adopts pure pneumatic filling method, no electricity is needed, and it is especially suitable for use in a humid environment with explosion-proof requirements, and has a high degree of safety.
4.The material outlet adopts a drip-proof filling nozzle, which has good sealing performance and ensures accurate filling volume.
5.The diameter of the crystal head of the filling nozzle can be customized according to the diameter of the needle tube head, which is suitable for syringes of various specifications.
6.The new upgrade adopts a five-way rotary valve, and you can choose to use the hopper to feed or use the feed tube to feed, which is suitable for a variety of materials.

Semi Automatic Syringe Liquid Filling Machine Pneumatic High Accuracy Ceramic Plunger Pump 1

Filling Pump
Controlled by peristaltic pump, high precision and easy cleaning.

Tags:

water bottling equipment,

water bottle filling machine,

Syringe Liquid Filling Machine
