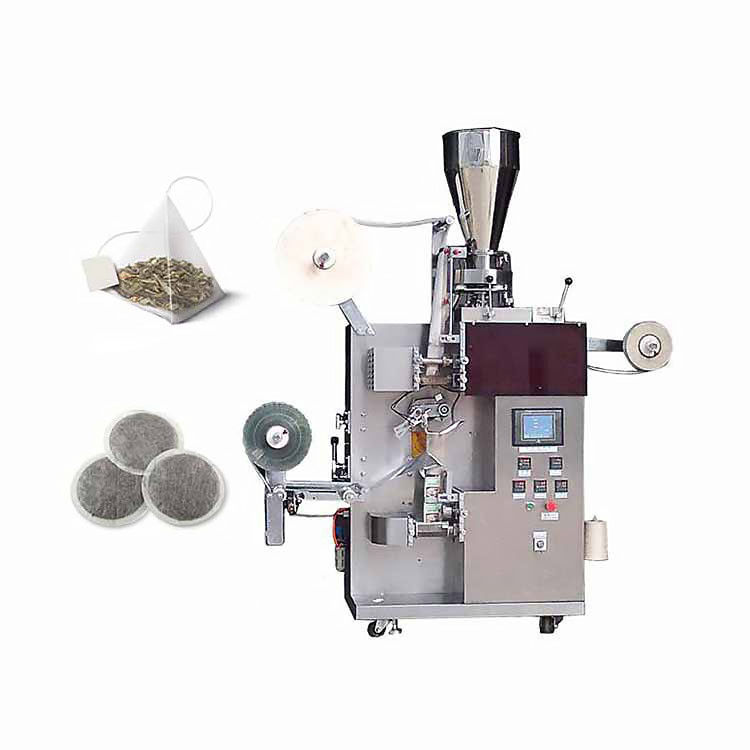

This automatic tea bag packing machine is suitable for packing granule broken tea, herbal tea, healthy tea, chinese medicine tea, ect into inner filter tea bag with string and tag as well as outer envelope bag.
Detail
1. smart computer control panel
Microcomputer intelligent control,simple operation,intelligent,convenient ,fast and accurate packaging.
2. Clamping block safety shield
It is easy to disassemble, safe and convenient ,to avoid scalding during packing ,and to protect it from pressure.
3. Bilateral advance heating sealing
It is easy to disassemble, safe and convenient ,to avoid scalding during packing ,and to protect it from pressure.
4. Brushed stainless steel body
Brush stainless body design,beautiful and generous,easy to clean without paint.
The machine is optional
The cursor is used on the film with printed patterns.If you need to cut a length of 10 cm ,the error is about 0.1 cm once ,and the print pattern will go off the track.The cursor is to draw a black frame on the packaging bag .when the machine is working ,it will automatically cut the bag within the scope of the black frame ,which is more accurate and will not run off.
It can realize automatic printing of production date and production batch number.
Accurately cut bags printed with color patterns to ensure the standard patterns to sure the standard pattern and length of each bag.
Specifications:
Item | LTDX-115 |
Bag size of inner bag | L:50-60mm W:30-80mm |
Bag size of outer bag | L:60-120MM W:70-90MM |
Capacity | 20-40bags/min |
Filling range | 2-12ml |
power | 220V,50HZ,3.35KW |
Weight | 700kg |
Dimension | 1200*850*1900mm L*W*H |
