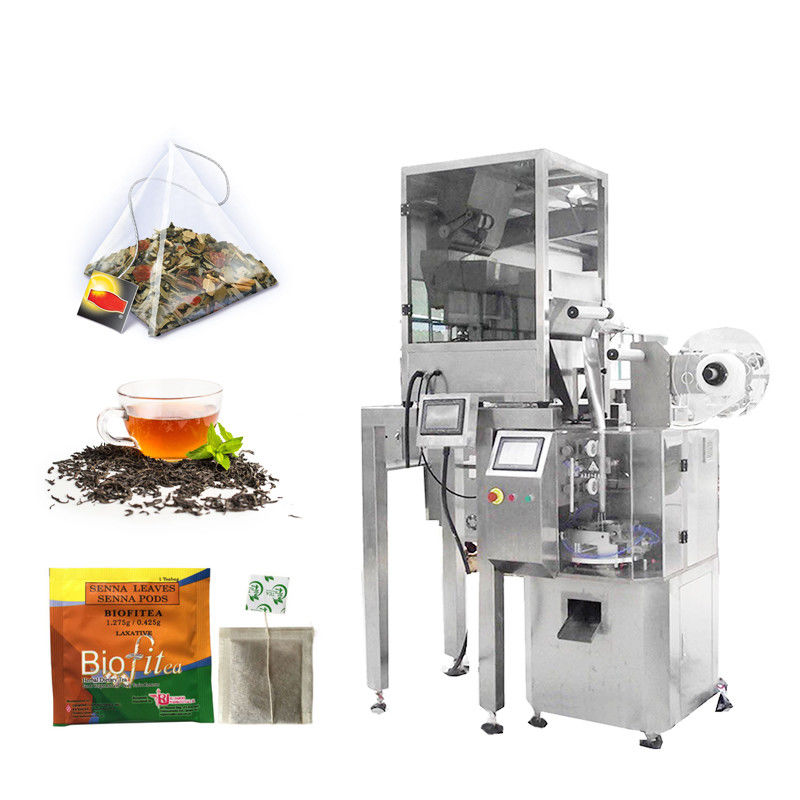

Automatic Triangle Pyramids Silk Tea Bag Packing Machine For Making Inner And Outer Tea Bag
Application:
This machine is suitable for food chemical, pharmaceutical to automatic pack granules like sweets, beans, peanuts, seeds, grain, biscuits, nuts, tea, dumplings, gourmet, coffee, sugar, fastener and so on.
1. Easy to operate, adopt advanced PLC controller, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal.
3,The machine could be protected well when it stops with parking brake function.
4, Low consumption of the packing material. The machine is advanced with perfect sealing and leaving complete prints with pre-made bags.
5, The measuring machine could be added based on the packing material(such as automatic screw filling machine, intelligent combined weigher, liquid filling machine).
6, It conform to hygienic standards of food processing industry. The contact parts are made of stainless steel or other materials which suits the hygienic standards to ensure the hygienic security.
7. It is suitable for a broad range packing materials, suit for multi-lay compound, monolayer PE , PP and so on Preformed bagmade by film and paper.
Machine model | KL-100ZS | KL-100CS | KL-160CS | KL-100NS | KL-100NWS | KL-100SN |
Bag shape |
nonwovens bag,double chamber bag, 3/4 side sealing bag,pillow bag,stick sachet |
nylon pyramid bag, flat bag |
3 side sealing nonwovens bag, inside & outside bags |
double chamber bag, inside & outside bags |
||
Packing speed |
20-50 bags/min |
10-30 bags/min |
10-20 bags/min |
20-50 bags/min |
20-50 bags/min |
10-30 bags/min |
Packing weight | Max:20g | Max:20g | Max:100g | Max:10g | Max:15g | Max:20g |
Suit for |
granule, granules tea, granules desiccant, granules little drugs,etc |
loose tea leaves,loose scented tea,loose dry petals,etc
|
||||
Machine size (L*W*H) |
725*600* 1105mm |
1200*600* 1900mm |
900*900* 2100mm |
1600*920* 2650mm |
1050*700* 1300mm |
1200*600* 1900mm |
Power specification |
220V,50HZ, 1.4KW |
220V,50HZ, 0.5KW |
380/220V, 50HZ,1.85KW |
220V,2.2KW |
220V,50HZ, 3.7KW |
220V,50HZ 1.2KW |
