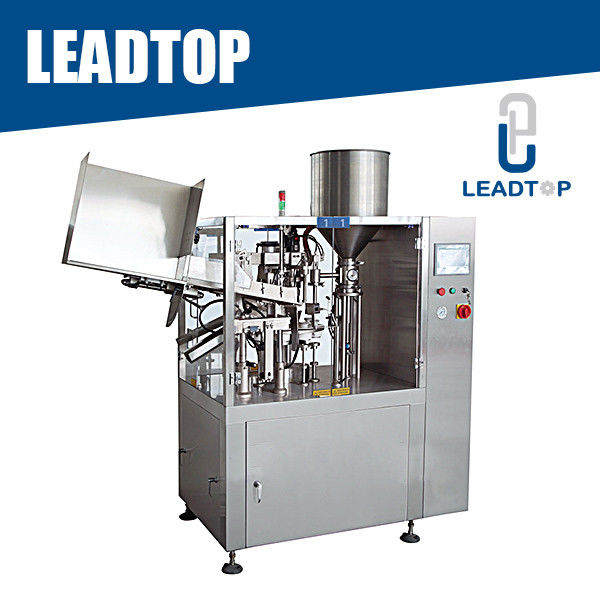

LTRG-60A Automatic Plastic Tube Filling and Sealing Machine Tube Filling Machine
Summary:
The machine is used for filling cream (paste)-like and liquid-like materials into plastic tube or plastic-aluminium laminated tube and then
sealing them, pressing data or product numbers on the end of the tube and cutting the end. This machine is widely used in daily cosmetics, medicine and food industries.
Features:
Compact Design
Driving Parts Fully-closed
Pneumatic Tube Washing & Feeding
Intelligent Temperature Control and Cooling System
Easy to Operate and Adjust
316L Stainless Steel Contact Parts to meet GMP Standard
Safety Interlock Shutdown when Door is Open
Overload Protection Provided
Automated Working process from Tube Loading to Finished ProductsOutput
Automatic Orientation Effected by Photoelectric Induction
Technical parameters:
| Model | LTRG-60A |
| Place Of Origin | Zhejiang, China (Mainland) |
| Brand Name | LEADTOP |
| Filling Volume | 5-250ml/piece (Adjustable) |
| Tube Length | 50-300mm (customizable) |
| Tube Diameter | Φ5mm-Φ60mm |
|
Filling Accuracy |
≤±1% |
|
Product Capacity (Pcs/min) |
30-50 0.1m3/min |
